OS Engines GT22 22cc Gas 2-Cycle Airplane Engine with Muffler

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Gasoline power for your .90-1.20 aircraft

    An investment in O.S. gasoline power quickly pays for itself in fast starts, higher power and more flights from your fuel budget. For the many planes that use 2-stroke .60-.91 or 4-stroke 1.20 glow engines, the GT22 – the third gasoline engine available from O.S. – is the perfect choice. It cranks out nearly 10% more power than other 2-stroke gasoline engines of similar size! Throughout the GT22, the fit and finish are outstanding – always delivering the same high performance as when you first installed your brand new, hand-crafted, quality inspected O.S. engine.
    O.S. Two Year Limited Warranty
    • Pitts style muffler has been reinforced at seam, bend and mounting bolt locations for strength.

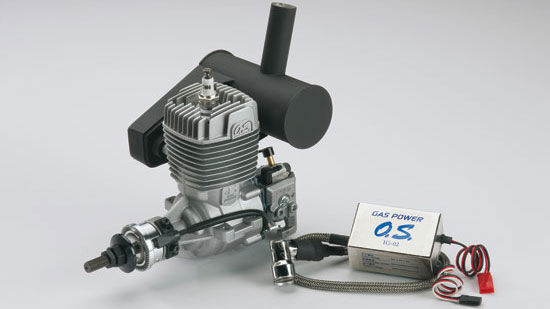

    • Redesigned for even easier starting, the IG-02 electronic ignition system handles 4-6 cell NiCd/NiMH or 2-cell LiPo/LiFe batteries.
    • Includes single prop nut with locking nut.
    • Uses beam mounting for easy installation in planes designed for glow power.
    • Rear-mounted Walbro carburetor is custom-designed for the GT22 – a choke rod guide has also been integrated into the crankcase for effortless setup.
    Muffler

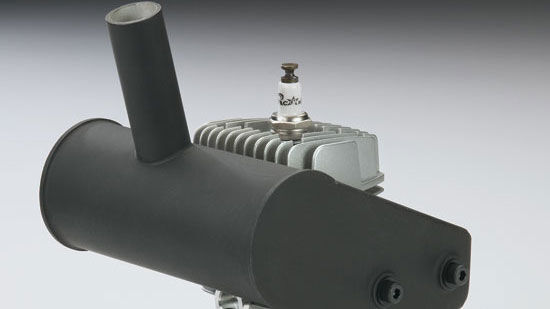

    The GT22 Pitts muffler is built to last, with reinforced mounting bolt holes and webbing at high-stress points.
    Includes
    Complete package includes engine, muffler, electronic ignition module, CM-6 spark plug, muffler gasket and bolts.

    Product Specs

    Benchmark Prop
    15x10
    Bore
    1.26" (32mm)
    Crankshaft Threads
    UNF-2A 5/16-24
    Crankshaft Type
    Threaded
    Cylinders
    Single
    Displacement
    1.35 cu in (22 cc)
    Engine (Only) Weight
    26.86 oz (761.6 g) w/o muffler
    Ignition Weight
    3.70 oz (105 g)
    Muffler Type
    2-piece aluminum
    Muffler Weight
    4.68 oz (132.6g)
    Oil Type & Content
    50:1 mix ratio 2-cycle
    Plug Type
    CM-6 spark plug
    Power Type
    Gas
    Product Height
    3.1" (140.5mm) bottom of mounting tab to top of muffler
    Product Length
    5.5" (139.5mm) from carburetor to front of drive hub
    Product Width
    2.7" (70mm) at mounting tabs
    Prop Range
    16 x 8 - 17 x 8
    RPM Range
    1,800 - 9,000
    Stroke
    1.08" (27.5mm)
